Enhanced Smart Thermostat

Description

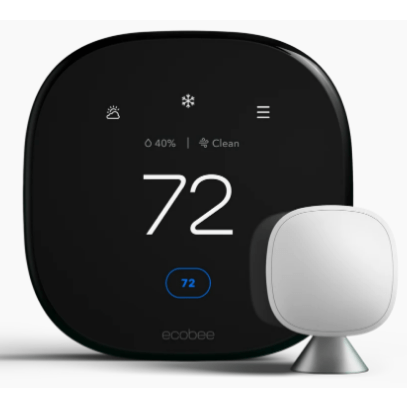

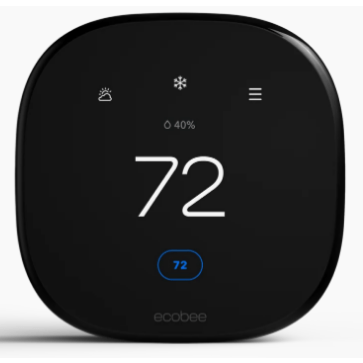

Ecobee EB-STATE6L | Enhanced Smart Thermostat

• Display: 4 in. full-color LCD touchscreen, 540 x 540 pixel display
• Thermostat Dimensions: Height: 103.89 mm (4.09 in.), Width: 103.89 mm (4.09 in.), Depth: 25.9 mm (1.02 in.)
• Trim plate: Height: 143.5 mm (5.65 in.), Width: 159.9 mm (6.29 in.), Depth: 7.71 mm (0.3 in.), Power Extender Kit*: Length: 62 mm (2.4 in.), Width: 62 mm (2.4 in.), Depth: 23 mm (0.9 in.) *Optional for installation
• Colors: Black front, white backing
• Thermostat sensors: Temperature, Humidity, Occupancy (Radar), Proximity (Radar)
• Compatibility: Works with most 24VAC HVAC equipment, including conventional furnaces and air conditioners (2H/2C), heat pumps (2H/2C + 2 stage AUX heat), boilers, and PTACs or fan coil units with up to 3 fan speeds. One 1-wire accessory or one 2-wire accessory support for humidifiers, dehumidifiers, and ventilators (HRV/ERV).
• HVAC accessory support: Control a one-wire HVAC accessory device like a humidifier, dehumidifier, or ventilator.Note: Self-powered accessories will require an additional 24V isolation relay.
• Wire Terminals: R, G, Y1, Y2, W2/OB, PEK+, C, W1
• Connectivity & security:
  • Dual-band Wi-Fi: 802.11 b/g/n @ 2.4GHz, 802.11 a/n/ac @ 5GHz
  • Bluetooth 5.0
  • WPA, WPA2, WPA3 encryption methods
  • DHCP (dynamic) or static IP addressing
  • 168-bit SSL encryption
  915MHz radio
• Works with: Apple HomeKit, Amazon Alexa, Samsung SmartThings, IFTTT, and more.
• Bandwidth: 15-20 MB/month (dependent on Alexa Voice Service usage)
• Power consumption: Up to 3.5 VA
• Powering methods: Wired 24VAC through terminals C and Rc., Power Extender Kit enables you to reliably power your thermostat without having to run a fifth wire.
• Sustainability:
  • Recycled packaging
  • Mercury-free
  • Arsenic-free
  • PVC-free
  ROHS compliant
• Temperature range:
  • Desired Temperature: 45° to 92°F (7° to 33°C)
  • Display: 40° to 100°F (5° to 37°C)
  • Sensitivity: +/- 1°F (+/- 0.5°C)
  Operating: 14° to 122°F (-10° to 50°C)
• Humidity range
  • Display: 20% to 90%
  • Sensitivity: +/- 5%
  Operating: 5% to 95% RH (non-condensing)
• Storage: -31° to 113°F (-35° to 45°C), 5% to 95% RH (non condensing)
• Warranty: 3-year limited warranty
• Languages: EnglishWhat’s in the box
• Smart Thermostat Enhanced
• Thermostat mounting plate
• Quick-start guide
• Wire labels
• Screws and drywall anchorsOptional for installation:
• Power Extender Kit (PEK)
• Trim plate
