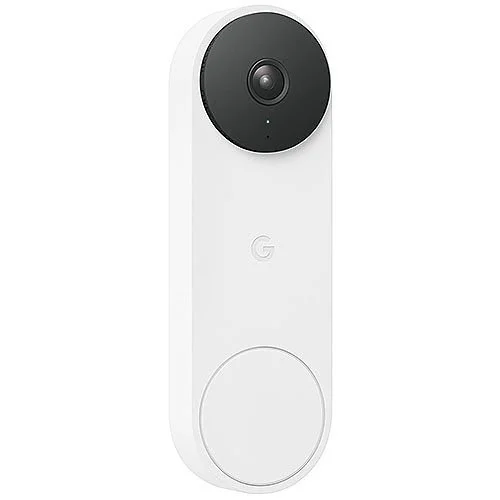

Google Nest Doorbell Wired White Gen 2

Description

• Dimensions 1.7 in x 4.6 in x 1.0 in (4.3 cm x 11.7 cm x 2.6 cm)

• Weight 4.28 oz (121.6 g)

• Power requirements: 12V AC-24V AC, requires a 10V transformer and wired doorbell

• Camera 1/3-inch, 3-megapixel (2K) color sensor, 8x digital zoom

• Video HD UXGA 1600 x 1200, up to 30 frames/sec, H.264 encoding,

• Field of view 160° diagonal

• Audio High-quality speaker and microphone

• Night Vision 850 nm infrared LEDs

• Support and limited warranty

  In the box

  • Nest Doorbell (Wired) video doorbell
  • Chime connector
  • 15° wedge
  • Release tool
  • Masonry drill bit
  • Window decal
  • Wall plate
  • Extension wires
  • Wall anchors
  • Screws
  Quick Start Guide

  Requirements

• Requires a wired doorbell and chime.

• Wi-Fi 802.11 a/b/g/n/ac, 2.4GHz or 5GHz (WEP, WPA, WPA2 encryption supported). Working broadband internet connection with at least 2 Mbps upload speed (DSL may not qualify). At 1600 x 1200, Nest Doorbell (Wired) requires 800 to 2000 Kbps of upload band-width while streaming video.

• Requires a compatible phone or tablet with the free of charge Nest app and Bluetooth 4.0.

• Use requires creation of a Google Nest Account and acceptance of Terms of Service, which can be found online at nest.com/terms

• Video streaming and Google Nest Aware may be subject to interruptions or failures for reasons beyond Nest’s control, like intermittent Wi-Fi or service provider outages.

• Nest Doorbell (Wired) and Nest Aware do not provide thirdparty monitored emergency notification or response.
