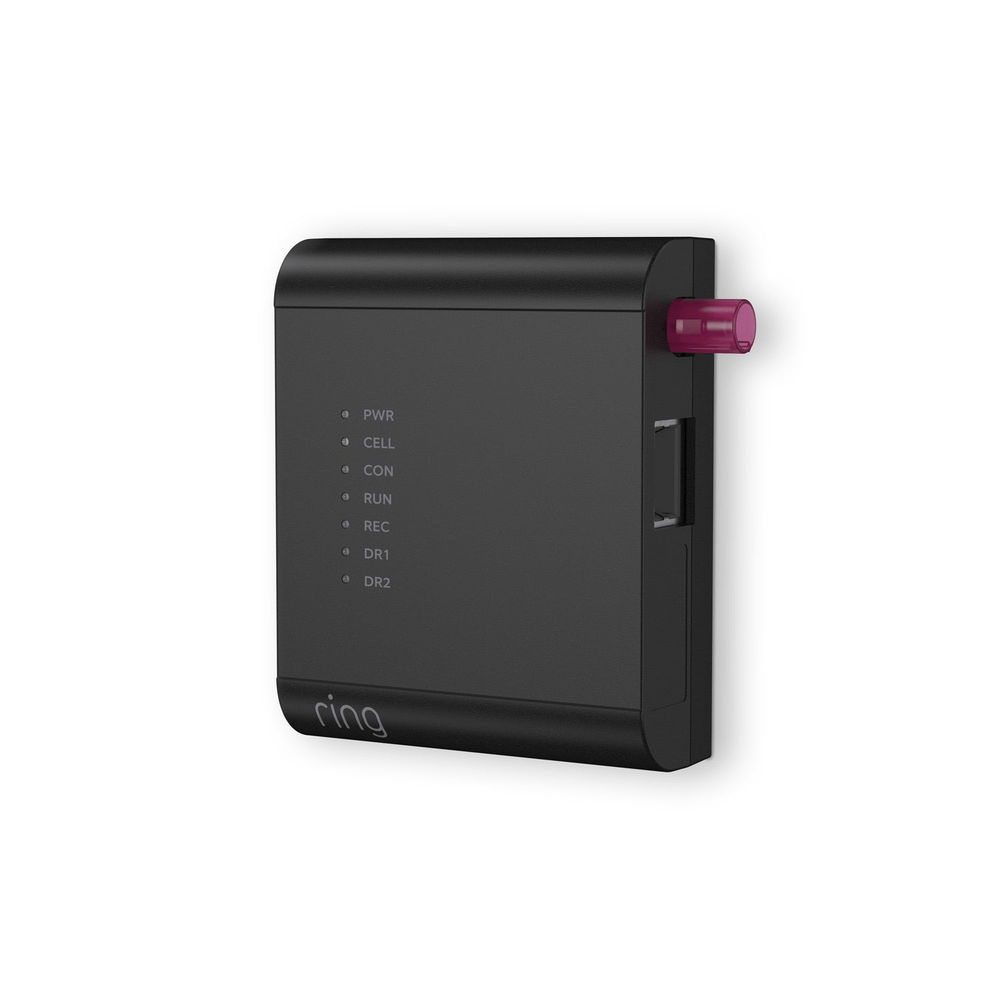

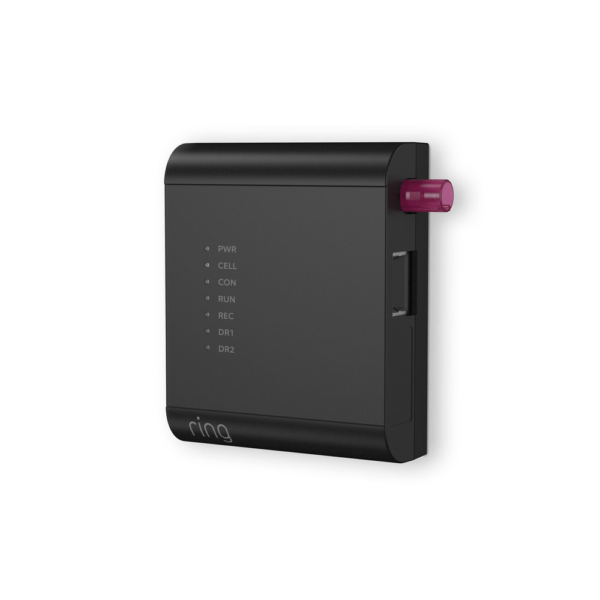

Ring Access Controller Pro 2

Description

Ring B08MVJ2YFT | Access Controller Pro 2

• Dimensions: 2.9″ X 2.4″ X 0.87″
• Available Colors: Black
• Features:
  • 1-gate/door actuation via Wiegand interface
  • 1-gate/door actuation via Normally Open relay
  Indirect control of door release through postal switch or request-to-exit interface
• Power: Device: USB – 5VDC/0.8A or Terminal – 10-24VAC/DC (4W Peak Power)
• Adapter Input: 100-240V ~0.3A 50/60GHz
• Adapter Output: 5.2V AC 1.8A
• Connectivity: Ethernet and onboard eSIM (cellular) on same device. eSIM has WW connectivity [Cellular: LTE CAT-M1 with GPRS/2G fallback].
• Relay Rating: 32V / 2 Amp
• Operating Humidity: 5% to 90%
• Operating Temperature: -20 Celsius to +65 Celcius
• Box Includes
  • (1) Ring Access Controller Pro v2 Device
  • (1) 8 pin screw type plug-in connector
  • (1) USB 5V DC wall supply
  • (1) micro USB cable
  • (4) Cable labels
  • (2) Double sided mounting tape
  • (1) Puck Antenna
  (1) Installation guide
• Tools required: Wires (18-22 AWG)/ Cables for connector terminals; Precision flathead screwdriver; Wire strippers; Optional: RJ45 Ethernet Cable (length less than or equal to 3 meters); Optional: PVC Junction Box (if installed outside of the call box or existing junction box)
